参数资料
| 型号： | PC2SD11NXPAF |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 2/15页 |
| 文件大小： | 0K |
| 描述： | PHOTOCOUPLER TRIAC OUT 6-SMD |
| 产品目录绘图： | PC Series Circuit |
| 标准包装： | 1 |
| 电压 - 隔离： | 5000Vrms |
| 通道数： | 1 |
| 电压 - 断路： | 400V |
| 输出类型： | 交流标准三端双向可控硅开关 |
| 电流 - 栅极触发电流 (Igt)（最大）： | 10mA |
| 电流 - 保持 (Ih)： | 100µA |
| 电流 - DC 正向(If)： | 50mA |
| 电流 - 输出 / 通道： | 100mA |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 6-SMD |
| 供应商设备封装： | 6-SMD |
| 包装： | 标准包装 |
| 产品目录页面： | 2768 (CN2011-ZH PDF) |
| 其它名称： | 425-2573-6 |
PC2SD11NTZ Series
■ Internal Connection Diagram
1
2
3
6
5
4
1
2
3
4
5
6
Anode
Cathode
NC
Anode/Cathode
No external connection
Cathode/Anode

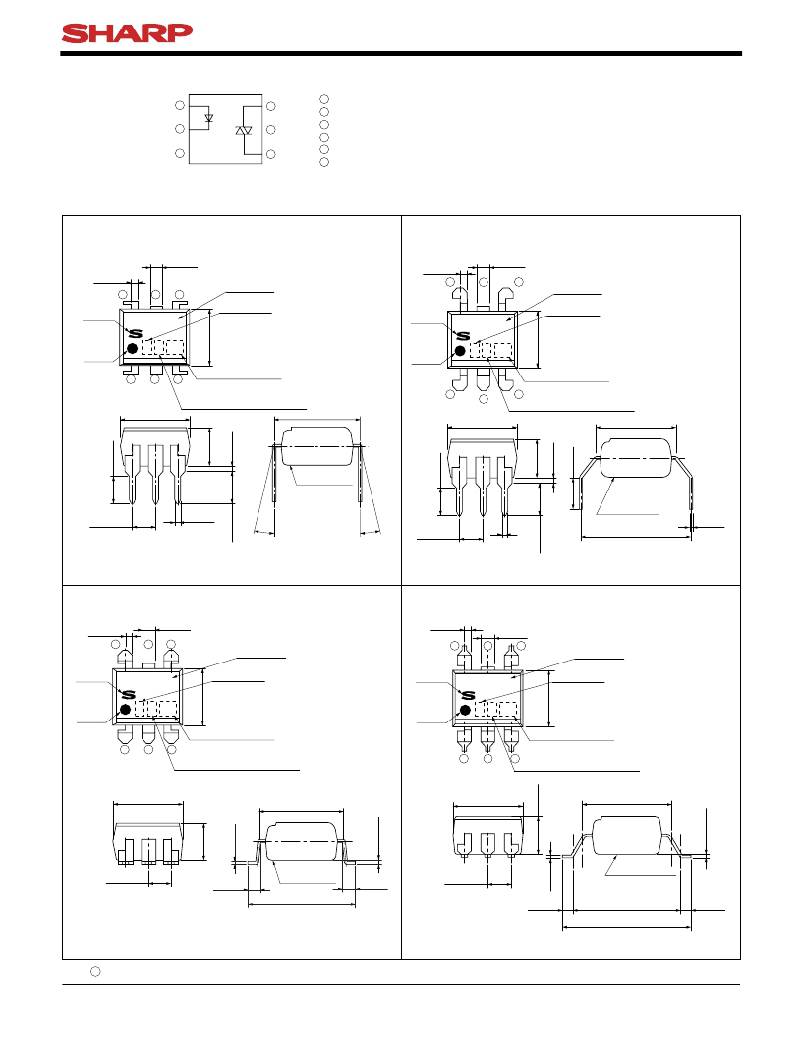

■ Outline Dimensions
1. Through-Hole [ex. PC2SD11NTZ ]
(Unit : mm)
2. Wide Through-Hole Lead-Form [ex. PC2SD11NVZ ]
0.6
1.2
± 0.2
SHARP 6
mark
"S"
5 4
2SD11
± 0.3
Model No.
Rank mark
0.6 ± 0.2
6
SHARP
mark
"S"
1.2 ± 0.3
5 4
2SD11
Model No.
Rank mark
Anode
mark
Anode
mark
1
2
3
Date code (2 digit)
Date code (2 digit)
7.62
7.12 ± 0.5
Factory identification mark
7.62 ± 0.3
1
2
7.12 ± 0.5
3
Factory identification mark
± 0.3
Epoxy resin
2.54
10.16
0.26
2.54 ± 0.25
0.5 ± 0.1
θ
θ : 0 to 13?
θ
± 0.25
0.5 ± 0.1
Epoxy resin
± 0.5
± 0.1
Product mass : approx. 0.35g
3. SMT Gullwing Lead-Form [ex. PC2SD11NXP ]
Product mass : approx. 0.35g
4. Wide SMT Gullwing Lead-Form [ex. PC2SD11NWP ]
0.6
± 0.2
1.2 ± 0.3
0.6 ± 0.2
1.2 ± 0.3
SHARP
6
5
4
Model No.
SHARP
6
5
4
Model No.
mark
"S"
2SD11
Rank mark
mark
"S"
2SD11
Rank mark
Anode
mark
Date code (2 digit)
Anode
mark
Date code (2 digit)
1
2
3
7.12 ± 0.5
Factory identification mark
7.62 ± 0.3
1
2
7.12 ± 0.5
3
Factory identification mark
7.62 ± 0.3
2.54 ± 0.25
?
1.0 + 0.4
Epoxy resin
10.0 + ? 0 0.5
?
1.0 + 0.4
2.54 ± 0.25
0.75 ± 0.25
Epoxy resin
10.16 ± 0.5
0.75 ± 0.25
12.0
MAX.
Product mass : approx. 0.33g
Product mass : approx. 0.34g
? Pin
5
is not allowed external connection
2
Sheet No.: D2-A07401EN
