参数资料
| 型号： | PC3ST21NSZBF |
| 厂商： | Sharp Microelectronics |
| 文件页数： | 1/15页 |
| 文件大小： | 0K |
| 描述： | PHOTOCOUPL 600VAC .1A ZC 4-DIP |
| 产品目录绘图： | S2S, PC3ST21NS Circuit |
| 标准包装： | 50 |
| 电压 - 隔离： | 5000Vrms |
| 通道数： | 1 |
| 电压 - 断路： | 600V |
| 输出类型： | 交流过零三端双向可控硅开关 |
| 电流 - 栅极触发电流 (Igt)（最大）： | 7mA |
| 电流 - 保持 (Ih)： | 100µA |
| 电流 - DC 正向(If)： | 50mA |
| 电流 - 输出 / 通道： | 100mA |
| 安装类型： | 通孔 |
| 封装/外壳： | 4-DIP（0.300"，7.62mm） |
| 供应商设备封装： | 4-DIP |
| 包装： | 管件 |
| 产品目录页面： | 2767 (CN2011-ZH PDF) |
| 其它名称： | 425-2139-5 |

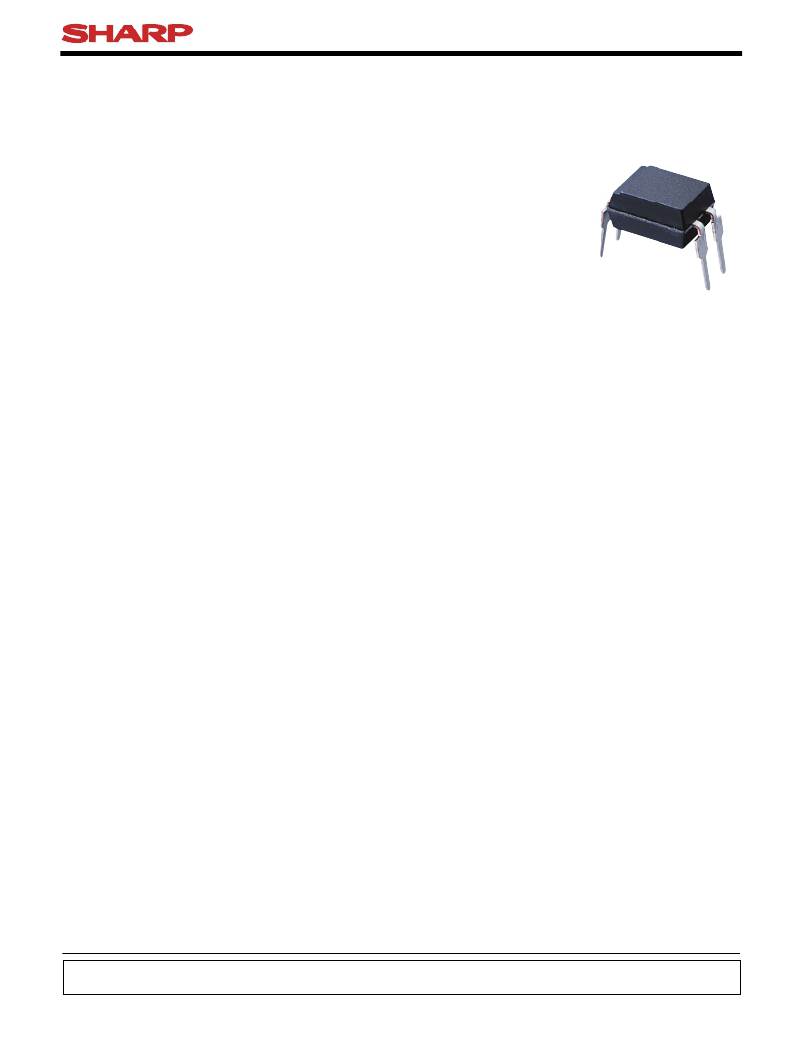

PC3ST21NSZ Series
PC3ST21NSZ
Series
V DRM : 600V, Zero cross type
DIP 4pin
Phototriac Coupler for triggering
?
Non-zero cross type is also available.
( PC3ST11NSZ Series )
■ Description
PC3ST21NSZ Series Phototriac Coupler include an
infrared emitting diode (IRED) optically coupled to an
output Phototriac.
These devices feature full wave control and are
ideal isolated drivers for medium to high current Triacs.
■ Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No. 3ST21 )
2. Approved by CSA, file No. CA95323 (as model No.
3ST21 )
3. Package resin : UL flammability grade (94V-0)
DIP package provides 5.0kV isolation from input to
?
DIN EN60747-5-2 (successor standard of DIN VDE0884)
output with superior commutative noise immunity.
■ Features
1. High repetitive peak off-state voltage (V DRM : 600V)
2. Zero crossing functionality (V OX : MAX. 20V)
3. I FT ranks available (see Model Line-up section in this
datasheet)
4. 4 pin DIP package
5. Superior noise immunity (dV/dt : MIN. 1 000V/ μ s)
approved type is also available. ( PC3SH21YFZ Series )
■ Applications
1. Triggering for Triacs used to switch on and off
devices which require AC Loads.
For example heaters, fans, motors, solenoids, and
valves.
2. AC line control in power supply applications.
6. Lead-free components are also available (see Model
Line-up section in this datasheet)
7. Double transfer mold construction (Ideal for Flow
Soldering)
8. High isolation voltage between input and output
(V iso (rms) : 5.0kV)
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A07101EN
Date Mar. 31. 2004
? SHARP Corporation
